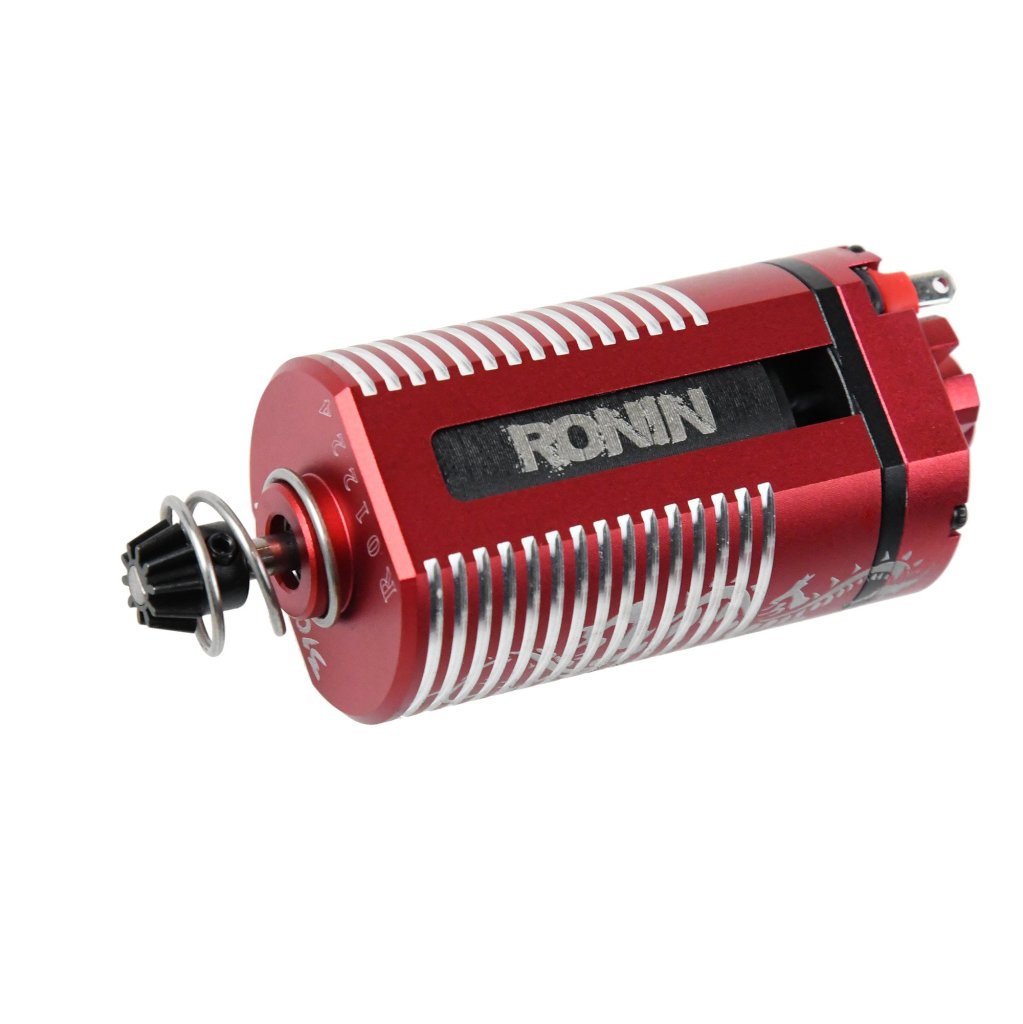

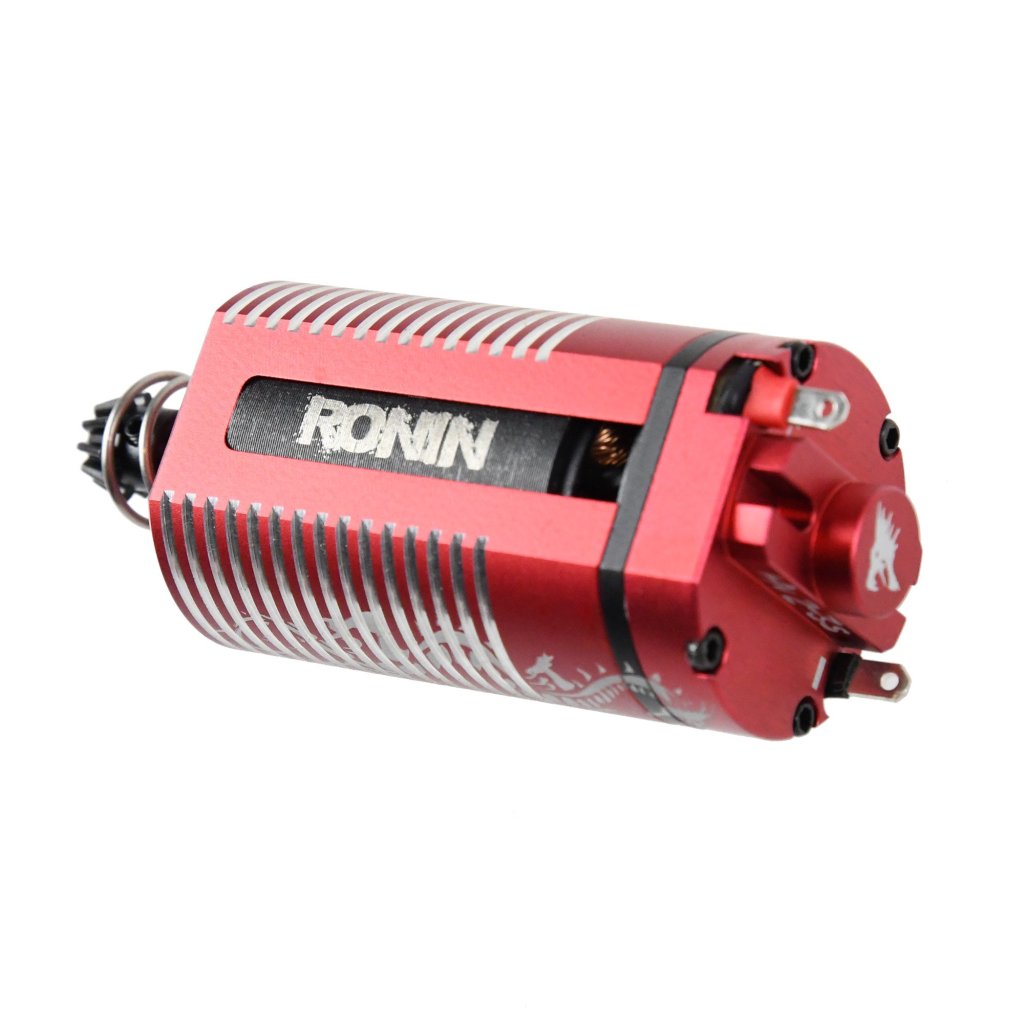

Warhead Ronin CNC motor 31k short

The Warhead RONIN motor is the pinnacle of quality in brushless motors. Compared to the Warhead CNC BLACK series, the RONIN includes several improvements, such as a titanium shaft that is stronger, lighter and together with a lightened rotor allows the best possible use of power and speed of the motor. In addition, the motor includes the best possible magnets and a hand-wound stator, wound by a master in the industry with over 20 years of experience.

Warhead motors are fully compatible with most over-the-counter ETUs and mosfets including brands such as Jefftron, Gate and Perun.

However, before using the motor in combination with a processor unit, it is important to switch to brushless motor mode or disable the active brake completely for proper operation.

Version:

• Warhead RONIN,
• 31k rpm at 11.1 V,
• short shaft.

Specifications:

• The best engine in the Warhead offer,
• high quality CNC machined 7075 aluminium casing,
• precision CNC construction combined with manual assembly
• complete in-runner design (outer shell does not rotate) with maximum power and torque,
• high quality heat resistant copper winding,
• hand wound stator by a master craftsman to guarantee the highest quality,
• titanium shaft,
• lightweight rotor,
• best quality magnets,
• internal ESC with motor and battery protection in case of over current and low voltage at 3.1 V per cell,
• quality removable pinion with D-cut for easy replacement,
• operating voltage 7.2 - 11.4 V (2 to 3 cell Li-pol batteries).

Brushless motors represent a huge technological leap forward. They have no brushes to wear out, have significantly higher efficiency and performance, and are less prone to mechanical wear than their brush versions.

Advantages of brushless motors:

• Higher torque,
• higher efficiency,
• higher reliability and lower maintenance requirements,
• lower operating and mechanical noise,
• longer lifetime,
• elimination of sparking from the commutator,
• almost complete elimination of electromagnetic interference,
• easy installation without the need for modifications and additional wiring.
